UIDAI Approved L1 FAP20 STQC
500 DPI Thermal Fingerprint Sensor
LIVE Detection Technology

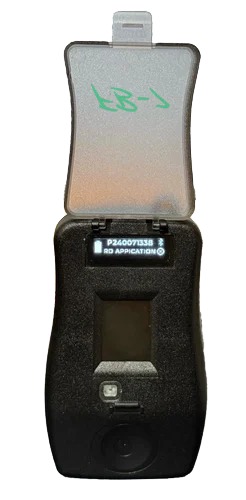

Sleek Compact Design with IP Protection
Ease of use, No Wires, High Speed Bluetooth interface with secured communication
8 Hours Battery 500 Punches
Share this product to
Copy Link to Share
Specification
| Sensor Characteristics | |
| Fingerprint Sensor Type | Thermal Sensor, NB-65210-S |
| Image Resolution | 500 dpi |
| Image Size | 300 x 400 Pixel |
| Image Grayscale | 256 (8-Bit Gray Level) |
| Dimension (L x W x H) | 90mm x 52.1mm x 25mm (LxWxH) approx |
| Weight | 40 gms (approx) |
| Capture Area | FAP20 (15.25mm x 20.34mm) |
| No. of Scans on single charge | 500 scans |
| Security | |
| Crypto Operation | RSA2048 Key Gen, AES GCM-250, SHA-256, TRNG support |
| Secure Memory | Device with TEE and secure memory key wrapping |
| Secure Boot | Secure boot support by the device |
| Wireless Encryption | Yes |
| Electrical | |
| Supply | 1 watt. Approx from Lithium Battery |
| Display | 128 X 32 OLED Display |
| Power Button | Capacitive touch button |
| Charging | Charging via TYPE-C USB Port |
| Environmental | |
| Temperature | 0 to 50 °C |
| Compliance | |
| Biometric Data Interchange Format | ISO19794-2/ISO19794-4 & FIPS 201 *compliant,Minex III certified |
| Image Quality Compliance | ISO, FBI PIV WSQ (Comp 10 : 1) , STQC*, JPEG 2000 lossless |
| IP Rating | IP67 ideal for outdoor applications |
| Device Driver | STQC Certified |
| Operating System | Windows & Android |
