IriShield USB BK 2121U is a dual iris scanner manufactured by IriTech and is STQC Certified Dual Iris Scanner
The scanner uses infrared LED for eye illumination and can be used both indoor and outdoor. The manufacturer specifies that the captured iris images are ISO/IEC 19794-6 compliant.
The USB-powered camera is suitable for using in both desktop and mobile solutions.
Widely used for AADHAAR Enrolment and Authentication.
Share this product to
Copy Link to Share

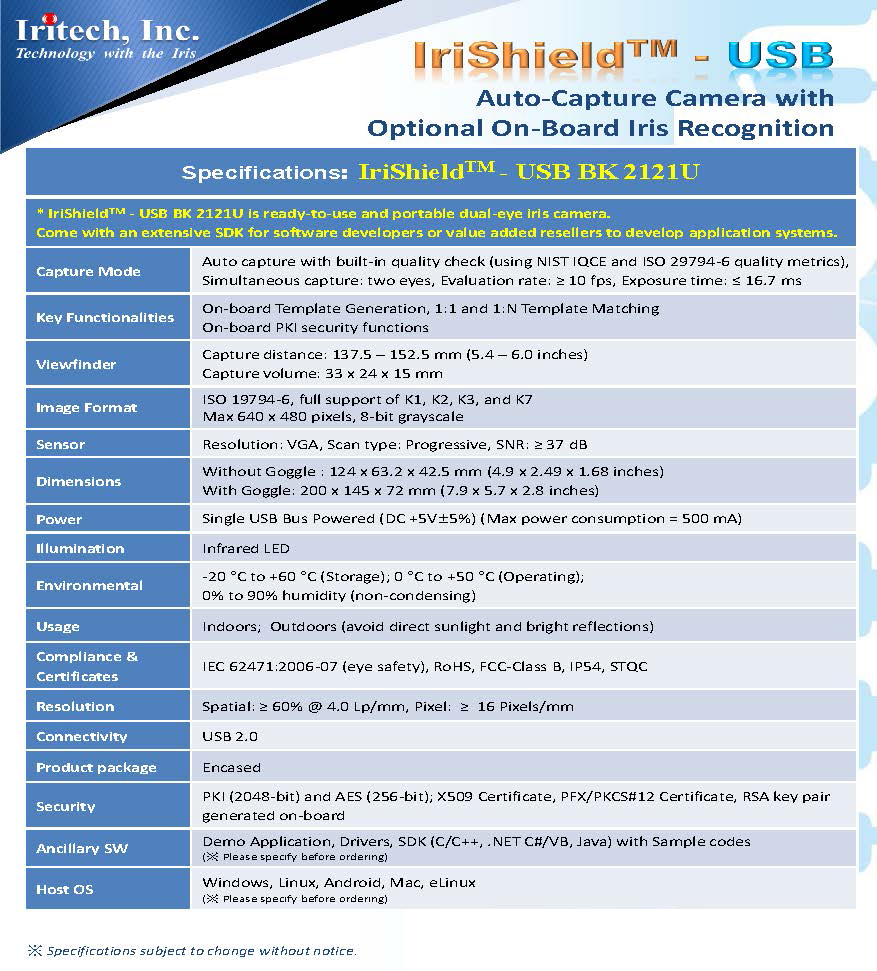

Specification
| Resolution | Spatial : ≥ 60% @ 4.0 Lp/mm, Pixel : ≥ 16 Pixels/mm |
| Capture Distance | 13.5 – 14.5 cm (5.3 – 5.7 in) from the front of camera lens |
| Image Format | ISO Standard 19794-6 (2005 & 2011), (640 x 480 Pixels, 8 bit Grayscale), full support of K1, K2, K3, K7 |
| Dimensions | 200 x 145 x 72 mm (7.9 x 5.7 x 2.8 in) |
| Interface | USB 2.0 High Speed (Data & Power supply) |
| Operating Temperature | 0 to 50˚C |
| Humidity | 10 to 90% RH, non-condensing |
| Certification | Eye safety standard (IEC 62471:2006-07), RoHS, FCC-Class B, STQC |
| IP Rating | IP54 |
